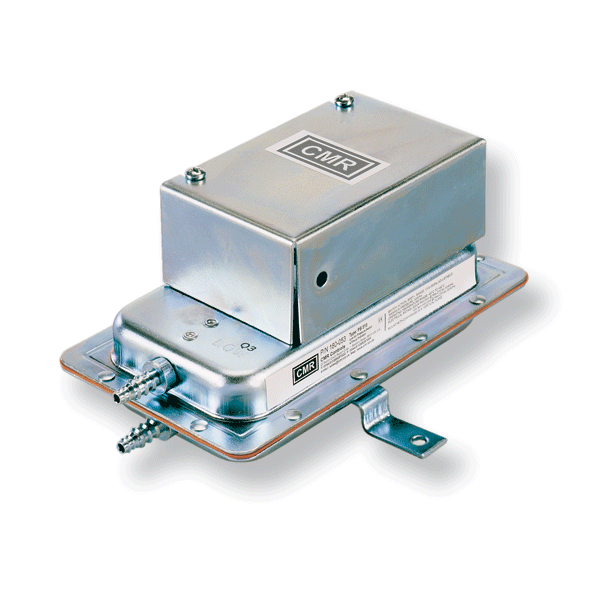

Large diaphragm Pressure Switch suitable
for very low pressures. Switch makes at
more than 13 Pa and breaks below 8 Pa
approx. when installed in verical position
with the nipples in down facing position.
Pressure Range 13 to 3000 Pa
The switching set-point is fully adjustable.
A single change over switch is standard.
Barbed Nipple Connection 6mm.
CMR CONTROLS LTD
22 Repton Court - Repton Close
Basildon, Essex, SS13 1LN, UK
Tel +44(0) 1268 287222
e-mail: sales@cmr-controls.com
